iKonix
KS-1201MW

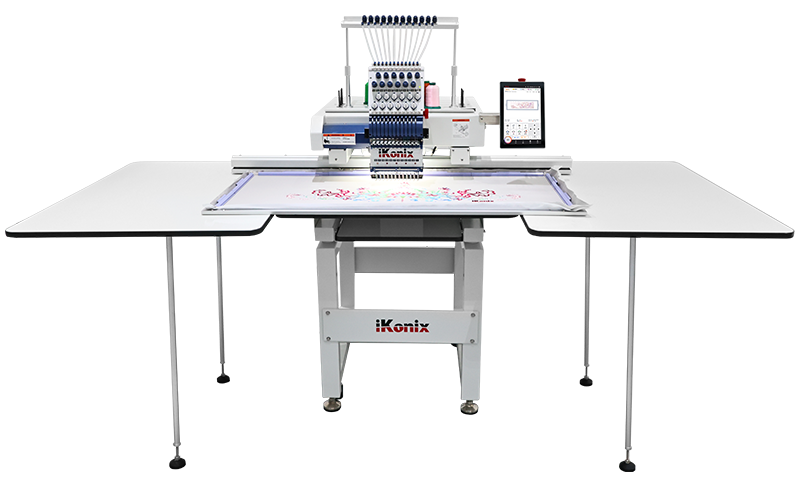

KS-1201MW is a large embroidery machine.
It's the best choice for personal textile, national costumes, pennants,
decorative painting and other large embroidery needs.
-
1
-
2
-
3
-
4
-
5
-

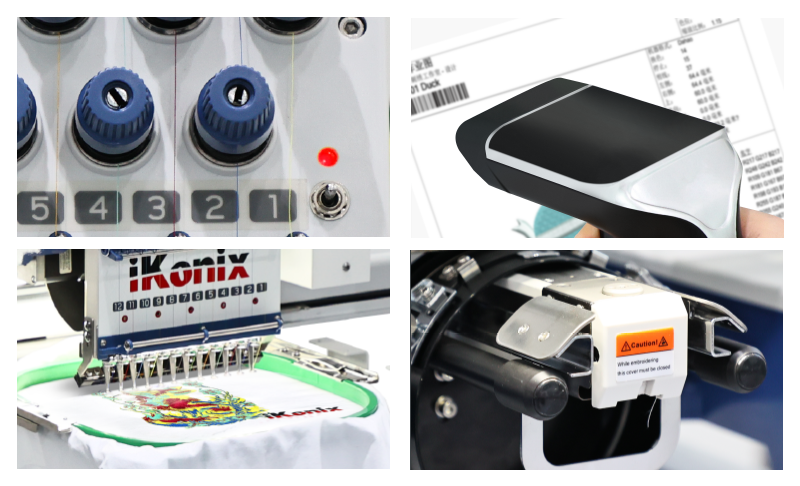

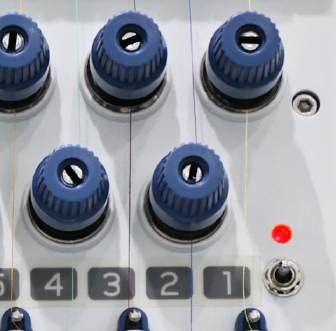

1.Automatic thread break detection
-
2.Max speed:
1200 stitches per minute
-
3.Auto thread trimming system
-
4.Recessed USB interfaces to protect USB drivers effectively
-
5.Memory capacity: 100 million stiches or 1000 designs
-
KS-1201MW DESIGNED FOR LARGE-FORMAT EMBROIDERY
It's the best choice for personal textile, national costumes, pennants,decorative painting and other large embroidery needs.
MAIN FEATURES
• Automatic thread break detection
• Support barcode scanner to transmit designs
• Embroidery area: 800 x 500 mm (31.5 x 19.7 in)
• Smaller sewing arm greatly improve the performance of embroidery machine
PANEL FEATURES
10.1 in touch screen with more true color and better graphics
Industrial-grade quality, consumer-grade experience, quick response, no stuttering, no drifting, strong interactive experience
• Select design / Select hoop / Needle select
• Machine maintenance reminder / Designs tracing
• Design settings / Match thread colors
• Machine settings / Alerts pop-ups
• Multiple language mode / Multiple fronts available
ENLARGE EMBROIDERY AREA (OPTIONAL)
Maximize your embroidery area, and easily complete large-range and exquisite embroidery designs
The extended table is the perfect aide for embroidery on oversized items, such as curtains, carpets, mattress, wedding dresses, quilt covers and much more
• Frame models：MW-3220，Embroidery area：800 x 500 mm (31.5 x 19.7 in)
• Frame models：SWM-4820，Embroidery area：1200 x 500 mm (47.2 x 19.7 in)

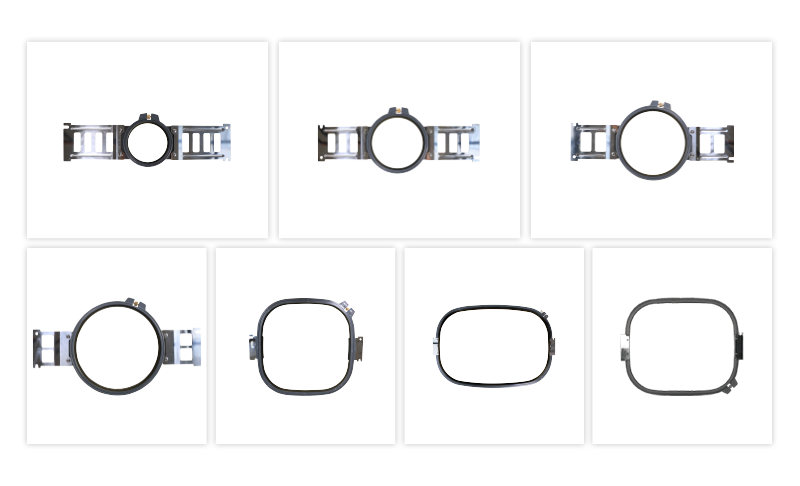

HOOP DEVICES
A variety of embroidery hoops to satisfy various embroidery needs
• Hoop A × 2 ：90 × 90 mm ，3.5 × 3.5 in
• Hoop B × 2 ：120 × 120 mm ，4.7 × 4.7 in
• Hoop C × 2 ：150 × 150 mm ，5.9 × 5.9 in
• Hoop D × 2 ：190 × 190 mm ，7.5 × 7.5 in
• Hoop E × 2 ：290 × 290 mm ，11.4 × 11.4 in
• Hoop F × 1 ：540 × 360 mm ，21.3 × 14.2 in
• Hoop G × 1 ：400 × 420 mm ，15.7 × 16.5 in
CAP ATTACHMENTS
Each KS-1201MW machine is armed with a hoop station, two cap rings and a cap driver for your cap embroidery needs
Cap rings ×2：Cap rings snap into the hoop station to prepare for cap embroidery
Hoop station ×1：Hoop station provides stability for fast cap hooping
Cap drivers ×1：Cap driver snaps into the embroidery machine’s bracket holder for hoops
