iKonix
KS-1201DW
KS-1201DW is a large-range embroidery machine with
wide application and full function.
No matter what kind of
embroidery needs, it will be the best choice.
-
1
-
2
-
3
-
4
-
5
-

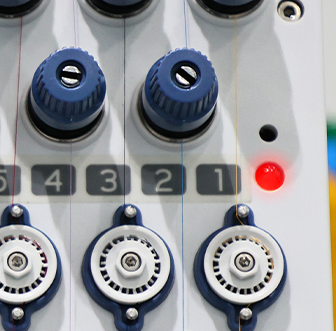

1.Automatic thread break detection
-

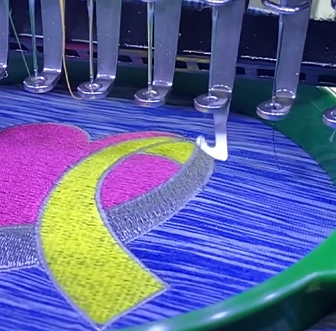

2.Max speed: 1200 stitches per minute
-
3.Auto thread trimming system
-

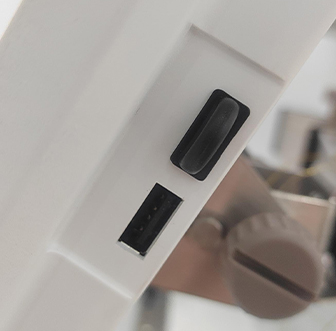

4.Recessed USB interfaces to protect USB drivers effectively
-

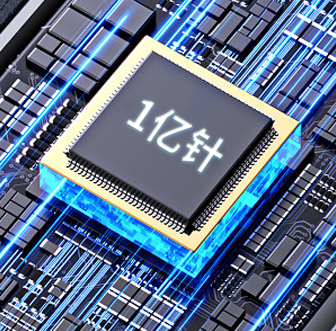

5.Memory capacity: 100 million stiches or 1000 designs
-

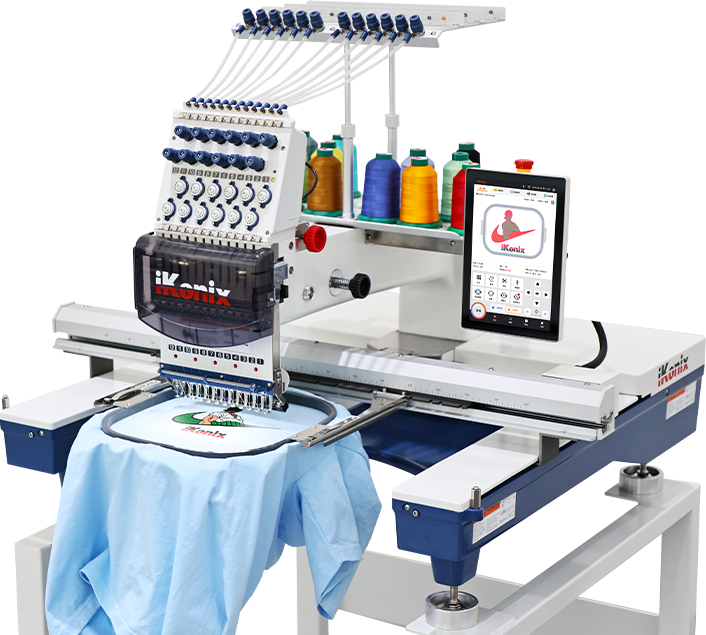

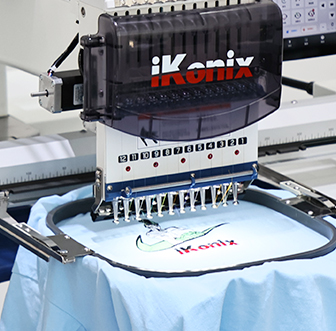

KS-1201DW is a large-range embroidery machine with wide application and full function.
No matter what kind of embroidery needs, it will be the best choice.
MAIN FEATURES

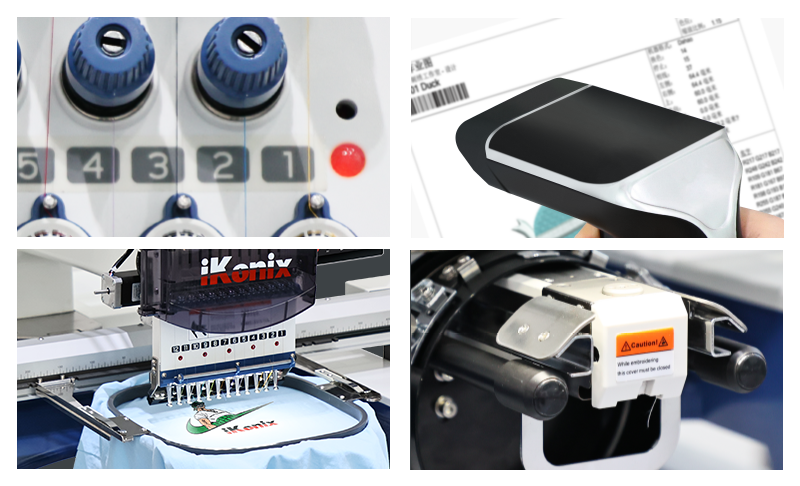

• Automatic thread break detection
• Support barcode scanner to transmit designs
• Embroidery area: 800 x 500 mm (31.5 x 19.7 in)
• Smaller sewing arm greatly improve the performance of embroidery machine
PANEL FEATURES

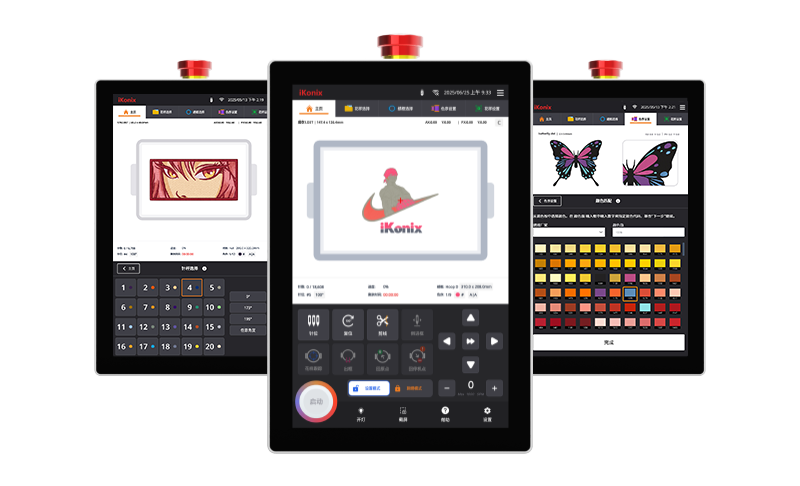

10.1 in touch screen with more true color and better graphics
Industrial-grade quality, consumer-grade experience, quick response, no stuttering, no drifting, strong interactive experience

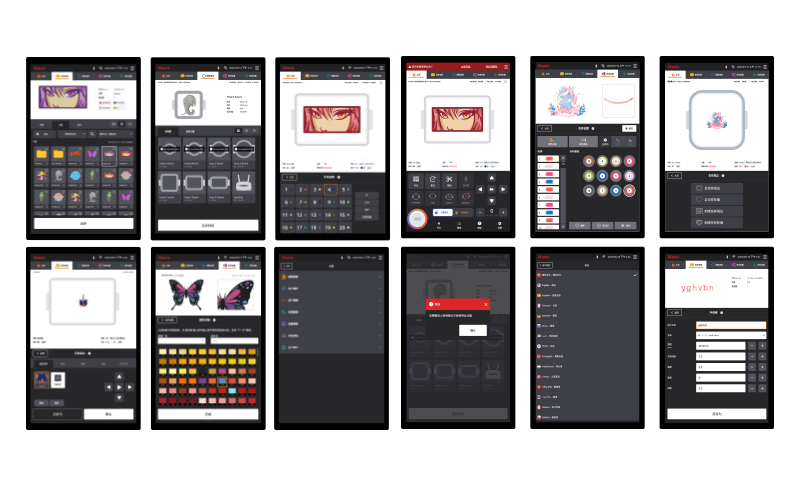

• Select design / Select hoop / Needle select
• Machine maintenance reminder / Designs tracing
• Design settings / Match thread colors
• Machine settings / Alerts pop-ups
• Multiple language mode / Multiple fronts available
ENLARGE EMBROIDERY AREA (OPTIONAL)
Maximize your embroidery area, and easily complete large-range and exquisite embroidery designs
The extended operation space will help you expand the business scope of your embroidery shop and attract new customers
• Frame models：EW-4820，Embroidery area：1200 x 500 mm（47.2 x 19.7 in）
• Frame models：W-3220，Embroidery area：800 x 500 mm（31.5 x 19.7 in）

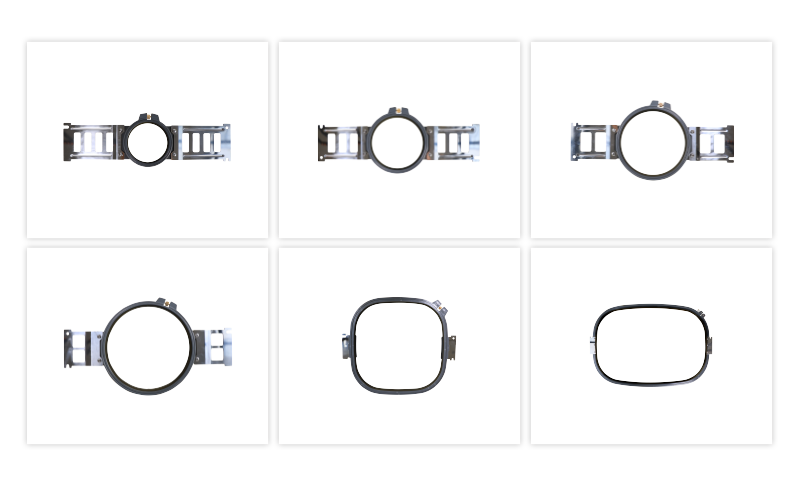

HOOP DEVICES
A variety of embroidery hoops to satisfy various embroidery needs
• Hoop A × 2 ：90 × 90 mm ，3.5 × 3.5 in
• Hoop B × 2 ：120 × 120 mm ，4.7 × 4.7 in
• Hoop C × 2 ：150 × 150 mm ，5.9 × 5.9 in
• Hoop D × 2 ：190 × 190 mm ，7.5 × 7.5 in
• Hoop E × 2 ：290 × 290 mm ，11.4 × 11.4 in
• Hoop F × 1 ：540 × 360 mm ，21.3 × 14.2 in

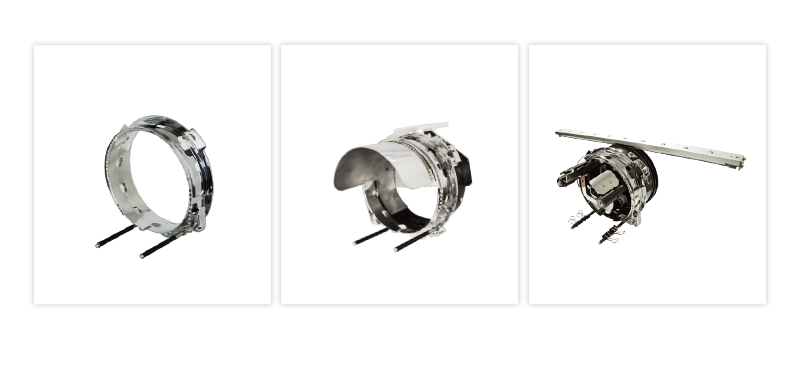

CAP ATTACHMENTS
Each KS-1201DW machine is armed with a hoop station, two cap rings and a cap driver for your cap embroidery needs
Cap rings ×2：Cap rings snap into the hoop station to prepare for cap embroidery
Hoop station ×1：Hoop station provides stability for fast cap hooping
Cap drivers ×1：Cap driver snaps into the embroidery machine’s bracket holder for hoops
